Step 3 - configuring your base station
From the left panel of the user interface, go to the Base Station dashoard and scroll down to the "Configuration" widget:
Changing the RF Region configuration
The RF Region has been configured during your first-time login, but you may change it at any time from the user interface.
Click on the "PEN" icon

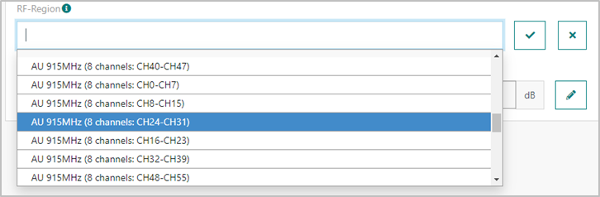

In the drop-down list, select your new region. You may start typing your search text to quickly find your target configuration. To learn more about selecting the right RF Region for your deployment, see RF regions
Click on the validation icon when finished
Wait about 1 minute for the Base Station to reconfigure, you can receive temporary errors during that phase.
Setting the antenna gain and cable loss
Set Antenna Gain and Cable loss as per the following table:
| Model | Antenna Gain | Cable loss |
|---|---|---|
| Ufispace pico (external antenna) | 1.5 dBi | 0 dB |
| Ufispace enterprise (internal antenna) | 1.4 dBi | 0 dB |
| Ufispace macro v1.5 & Browan Outdoor Micro (ODU) | Depends on antenna model | Typically ~ 0.5 dB but depends on installation |
| Milesight UG65 | 0 dBi | 0 dB |
| Milesight UG67 | Depends on antenna model | Typically ~ 0.5 dB but depends on installation |
| Kerlink iFemtoEvo | 3 dBi | 0.5 dB |
| Browan indoor Femto | 0 dBi | 0 dB |
Network configuration of the base station is exclusively managed through the Suplog user interface, as described by the following guidelines:
